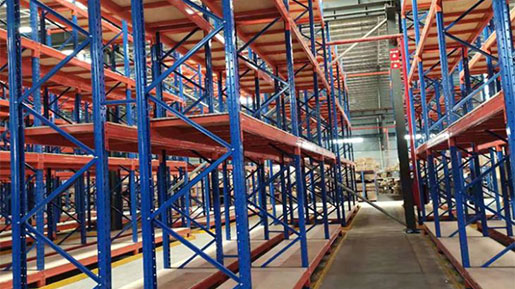

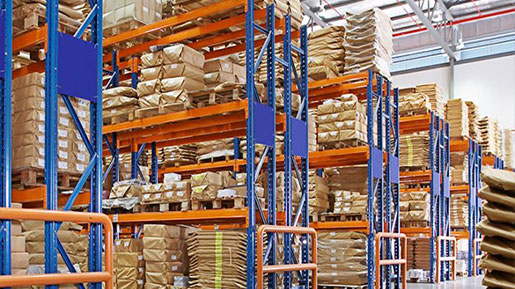

Cold room storage racks selective pallet racking system.
Send us layout of your warehouse. we can design a drawing for you.
Tell us the quantity you want, about main rack and add on rack.
| Features | Pallets can be located, accessed and moved individually. |
| Rapid handling of almost all types of palletised goods. | |
| Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. | |
| Maximizes space use in any warehouse configuration while retaining optimum product accessibility. | |
| Strength and rigidity prevents compression damage to goods. | |
| Bottom level of pallets can be stored on the floor, lowering structure costs. | |
| Load Capacity & Dimension | Loading capacity: 500 to 4,000 kgs UDL/beam level. |
| Height: 1,000 to 11,000mm | |
| Depth: 400 to 1,500mm | |
| Length: 1,500 to 3,300mm | |
| Specail sizes also avaiable to specific storage needs. | |
| Main Parts Specs | Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0 to 2.5mm, etc. |
| Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5 to 2.0, 140*50*1.5 to 2.0, 160*50*1.5 to 2.0, 180*50*2.0mm, etc., | |
| Horizontal / diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. | |
| Material | High quality steel |
| Finish | High quality Powder Coating Finish. |
| Quick Delivery | Within 25 days for ordinary order quantity. |
| Big production capacity allow us in a position to make quick delivery. |
Heights from 1800 mm to 5000 mm.
Frame widths from 400 mm to 1500 mm.
Shelf loading capacity from 250 to 600 Kg per level.
Maximum load per bay up to 5000 Kg.
Uprights available inΦ 1.5 to 2.0 mm steel.
Choice of steel or timber shelves (for steel, powder coating or zinc).
Workshop storage solutions consists of upright frame, beam, pallet support and other standard components. H bracing and D bracing connect with upright part by self lock bolts; Can effectively prevent racking from losing balance caused by the release of bolts. The beam can be easily adjusted each 3" (76.2mm) on the upright to meet your variety loading height requirements.
Our material storage system is easily utilized with just standard fork- and hand-trucks. Pallet racking is an ideal starting point for all your warehouse and storage needs.
Wanna to improve warehouse storage space utilization, and reduce warehousing logistics operating costs? Maobang rack selective will be your ideal warehouse racking system solution.
We will reply as soon as possible. Thank you for your support for our warehouse storage equipment.
